Steel Pipe Making Machine main equiment includes double cone decoiler, automatic cutting & butt welding, horizontal looper, forming and sizing unit, Hot grinding computer saw, Output roller, Roll, cutting system, etc….Steel Pipe Manufacturing Machine Slited coil is uncoiled and feed into forming section passing through the equipment of entry section. Entry section enables steel pipe machine to run continuously by using strip joining and accumulator. Before welding, pipe is formed in round shape passing through a series of driven and idler rollers of forming section. In welding section pipe is longitudinally welded by using high frequency induction welding method. Outside bead is removed and formed in shape of scrap. The weld seam is ironed and pipe passes through the cooling section. Then in sizing section, pipe is formed to specified size and converted into specified shape. After sizing, pipe is cut to required length by using flying saw cut off equipment and delivered to collecting table after passing through run out conveyor.

LEAVE MESSAGE

    · Steel Pipe Making Machine

    tube mill service

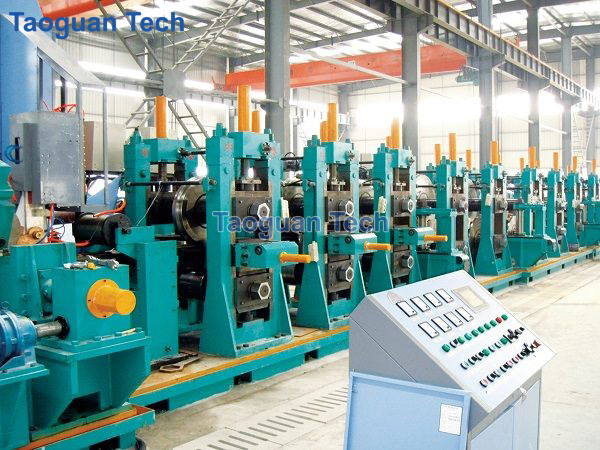

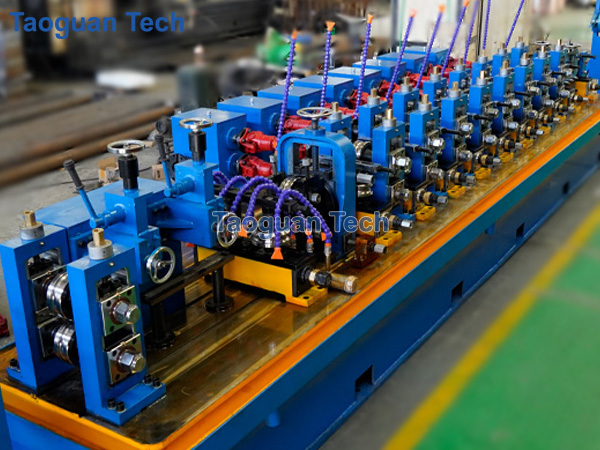

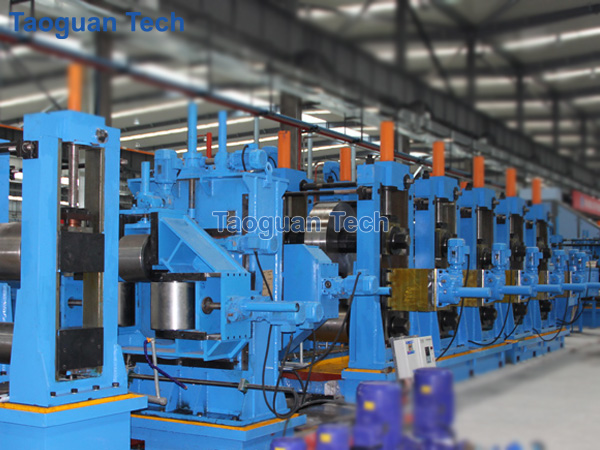

    Steel Pipe Making Machine features: high precision pipe making, stable performance, high yield, full automation, simple operation, durable, sturdy machine, continuous production, high efficiency, less material waste, and low production cost. Tube Mill Machine including: Uncoiler, forming welding section, welding seam leveling, welding seam grinding section, initial sizing section, bright solid solution, sizing and straightening section, pipe cutting machine, output cutting platform. The steel pipe production line control system is: intelligent high-precision PLC control, man-machine display, simple operation, easy to use, safe and reliable.

    REACH OUT TO US FOR A QUOTE

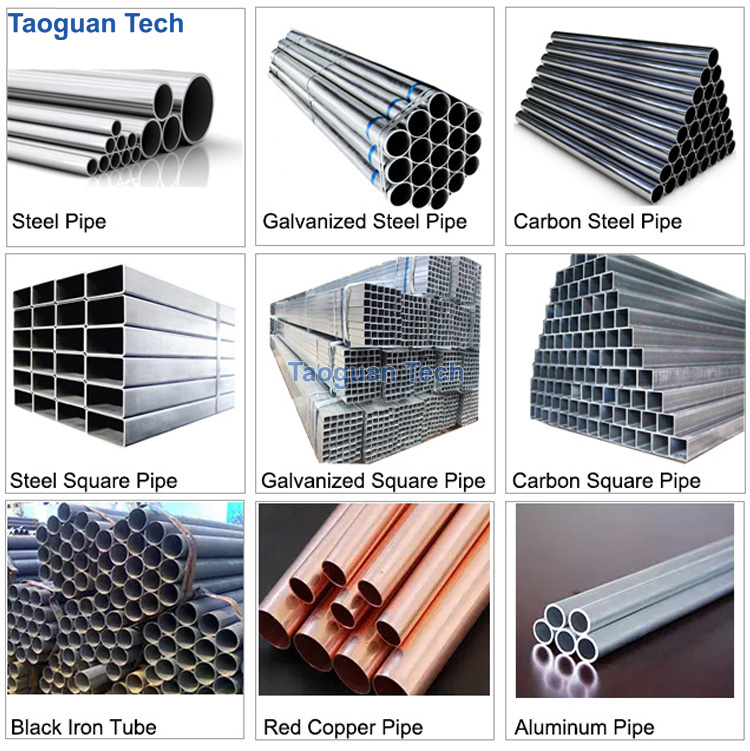

    Steel Pipe Making Machine Application

    1. Oil & Gas Pipes 7. Wire and Cable Protection Pipe
    2. Heating Pipe8. Structural Support Steel Pipe
    3. Low-pressure Process Pipe9. Industrial Steel Pipes
    4. Low Pressure Fire Fighting Pipe10. Decoration Pipe
    5. Sewage Pipes11. Water Pipe
    6. Steel Scaffolding Pipe12. Building pipe

    Steel Pipe Making Machine Flow Chart

    Tube Mill Flow Chart

    Step1: Steel Pipe Making Machine Uncoiler

    pipe making machine uncoiler

    Steel Pipe Mill Uncoiler the function is to support and expand the strip, so strip can enter into machine to roll forming. Strip can be expanded by hydraulic or pneumatic and uncoiler can be rotated 180 degree. Strip expand speed can be adjusted, braking device designed with pneumatic or hydraulic cylinder to press the brake rubber block

    Step2: Steel Coil Shear & end Welding

    Shear Welder Machine

    It is used to shear the head and the end of the steel strip of two steel coils, cutting off the irregular part then welding two steel strips, so machine can work continuously.

    Step3: Steel Pipe Making Machine Accumulator

    Tube Mill Accumulator

    Installed between shear & end welder and forming mill, horizontal spiral accumulator store a large amount of strip in a reasonable footprint space to give enough time for shear & end welder to cut and join the ends of two successive coils with non-stop tube mill, It has vertical cage type accumulator for small size tube mill

    Step4: Steel Pipe Making Machine Forming

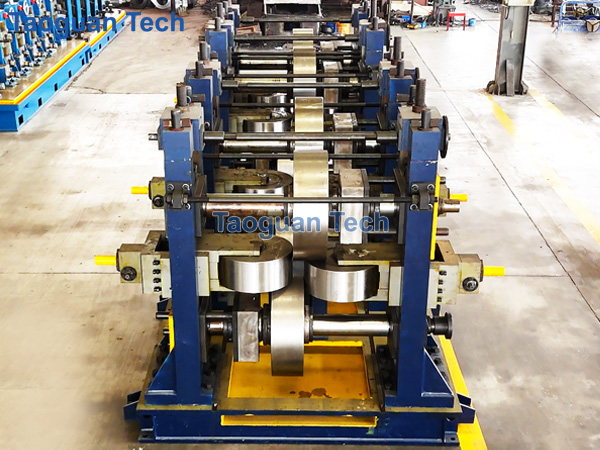

    Tube Mill Forming machine

    The function of this part is to make the steel strip become to the tube blank by forming rollers

    Step5: Steel Pipe Welding & Scarfing Equipment

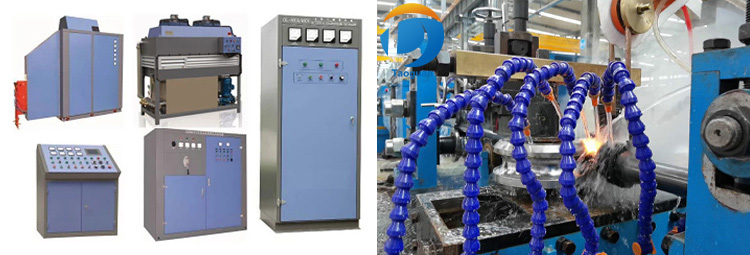

    Tube mill welding machine

    The function of this part is to center the welding seam and guide the tube blank to welding device, so the welding seam will be closed before welding, use scarfing tool to remove the burr to ensure the smooth welding

    Step6: Steel Pipe Making Machine Sizing Equipment

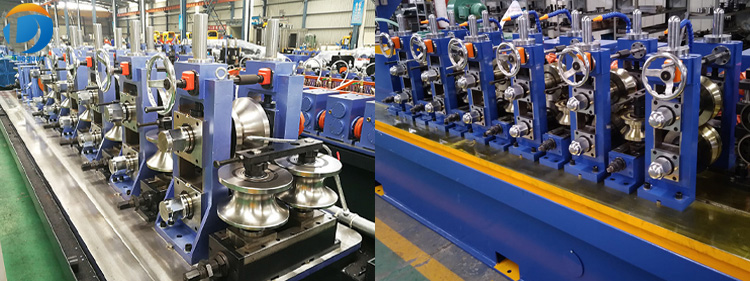

    tube mill sizing machine

    The function of this part is used to finish the tube blank from the forming machine, so the tube size can meet the physical dimension as customer required, form to square and rectangular and other shape profiles

    Step7: Steel Pipe Straightening

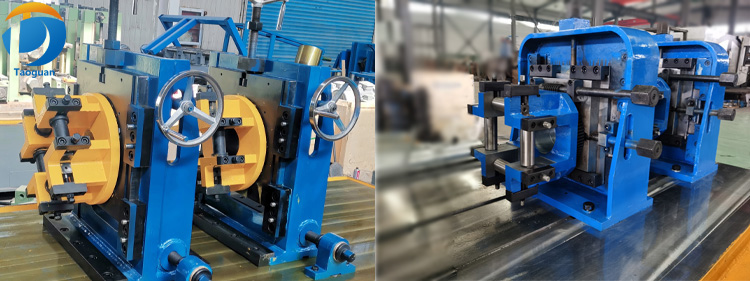

    tube mill straightening

    4 rolls turk head straightening, straighten pipe online to achieve the ideal flatness

    Step8: Steel Pipe Making Machine Cut off Saw Equipment

    Tube Mill Flying Saw

    Cut off the pipe with required length, length of pipe can be set
    With option of cold saw and flying saw

    Step9: Steel Pipe Making Machine Run out Table Equipment

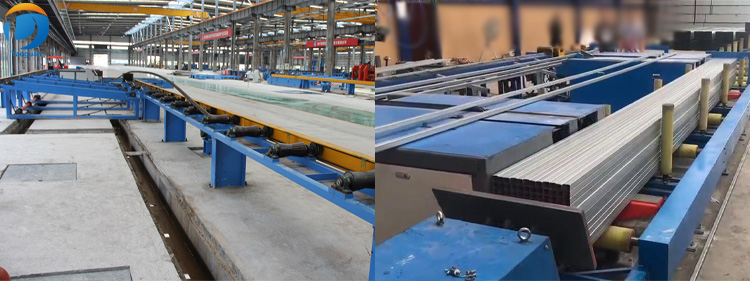

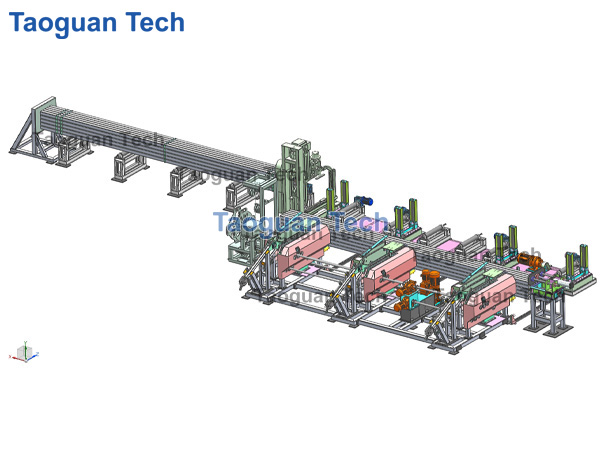

    Tube mill packaging

    This unit is to convey the finished pipe to packing, pipe transmit by dynamic roll. A signal sensing device installed in the end of run out table, when pipe touch the signal sensing device, it will feedback the signal to control panel, control panel start working and discharge the pipe

    Let’s Get Started

    If you have any questions about the machine, you can leave a message for us, and our professional technicians will promptly reply you.
