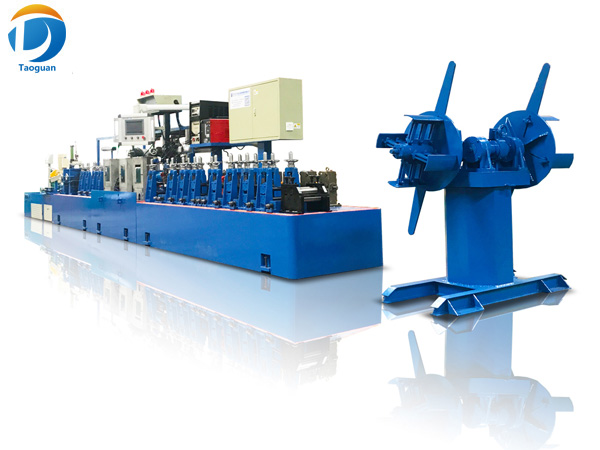

Stainless Pipe Making Machine For Stair Handrail
Stainless Steel Tube Mill Machine Description
The main components of a Stainless Steel Pipe Production Line include raw material processing equipment (decoiler, leveling machine, shearing and butt welding machine), forming and welding units (multi-pass roller forming molds, TIG/laser/plasma welding equipment), weld treatment and sizing devices (internal and external burr removal, precision sizing units), heat treatment and surface treatment systems (solution treatment furnace, bright annealing furnace, pickling line, polishing/sandblasting equipment), online inspection systems (eddy current testing, laser diameter measuring instruments), and cutting and packaging equipment (flying saw, laser cutting machine, automatic packaging machine).

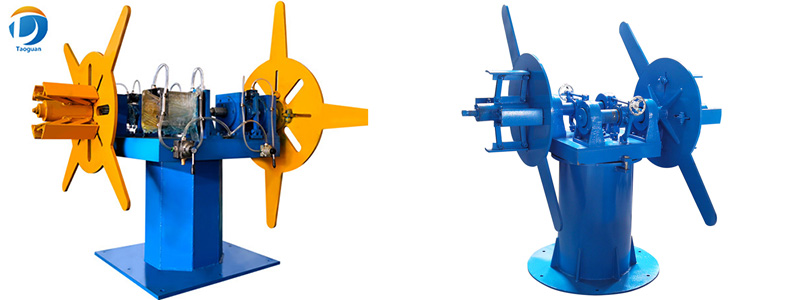

Un-coiler Machine

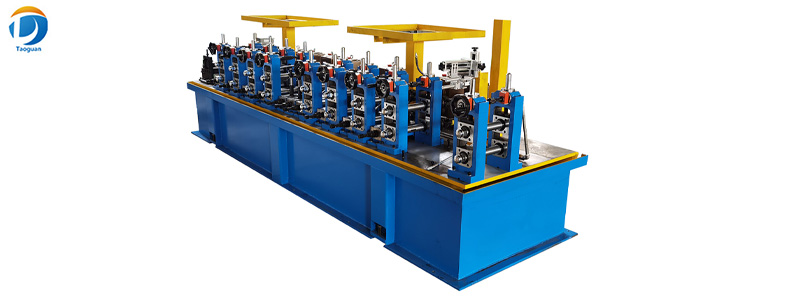

Forming Machine

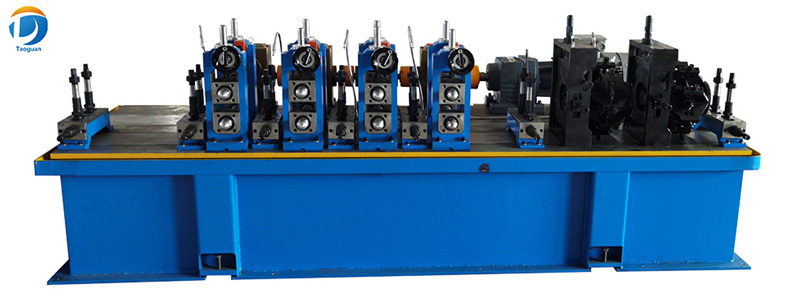

Sizing Machine

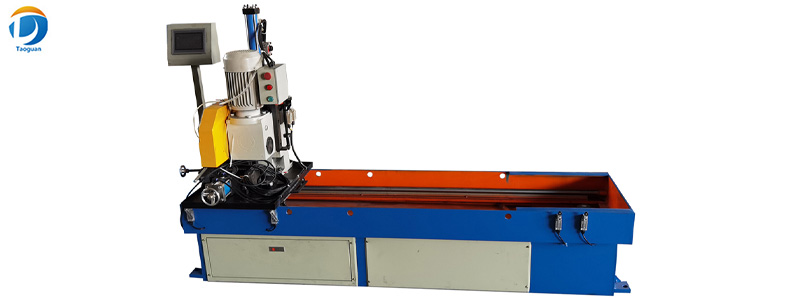

Stainless Pipe Cutting Machine

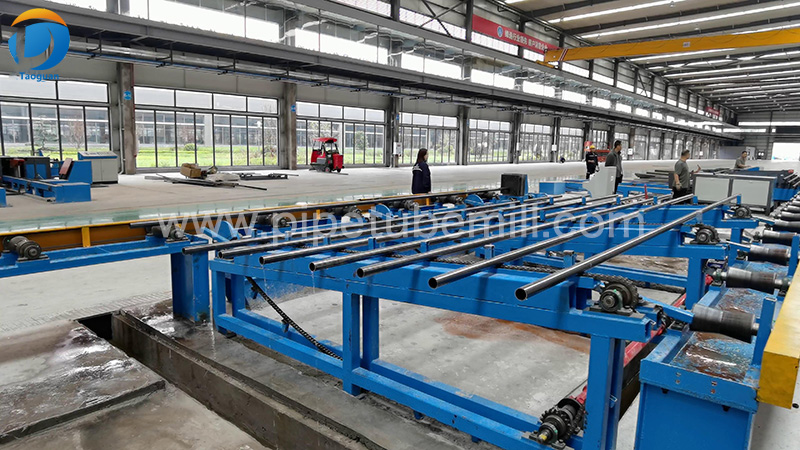

Automatic Stacker
Technical Parameter
| No. | Horizontal Diameter(mm) | Vertacal Diameter(mm) | Pipe Diameter(mm) | Pipe Thickness(mm) |
|---|---|---|---|---|
| SS-40A | 40 | 25 | φ8-φ25 | 0.2-1.8 |
| SS-40B | 40 | 30 | φ12.7-φ50.8 | 0.2-2.5 |
| SS-40C | 40 | 30 | φ12.7-φ63.5 | 0.2-2.5 |
| SS-50 | 50 | 35 | φ31.8-φ76.2 | 0.5-3.5 |
| SS-60 | 60 | 40 | φ50.8-φ114 | 1.0-5.0 |
| SS-70 | 70 | 45 | φ63.5-φ135 | 1.0-6.0 |
| SS-80 | 80 | 50 | φ76.2-φ159 | 1.0-6.0 |
| SS-90 | 90 | 60 | φ114-φ219 | 2.0-8.0 |
| SS-100 | 100 | 80 | φ219-φ328 | 2.0-8.0 |
Component Brands
| NO. | Parts Name | Brand |
|---|---|---|
| 1 | Main Drive Motor | Jiangsu King |
| 2 | Main Reducer | Jiangsu Guomao |
| 3 | Motor Driver (DC-digital converter) | PARKER |
| 4 | Bearing Seat | HRB, LYC, ZWZ |
| 5 | Pneumatic Components | AIR TAC |
Stainless Tube Mill Application
Production Process
Scrolling up → Uncoiling → Shear and Welding → Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table →Inspecting→ Packing→ Warehouse
