Square Pipe Making Machine

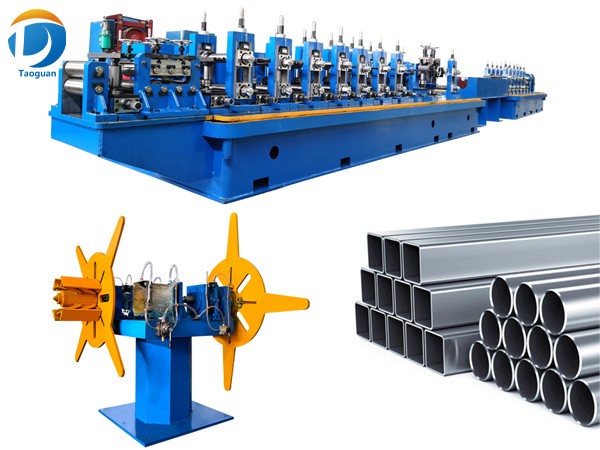

Steel Pipe Making Machine
CG-50 Tube Mill

Square Pipe Making Machine Description

Square Tube Making Machine main equiment includes double cone decoiler (hydraulic expansion and contraction), automatic cutting & butt welding (pneumatic cutting), horizontal looper, forming and sizing unit, Hot grinding computer saw, Output roller, Roll (optional or prepared by buyer), cutting system, etc….Steel pipe making machine can produce welded tubes of different specifications (pipe diameter, thickness, and length) according to the adjustment and configuration of the machine.

Uncoiler-machine

Pneumatic un-coiler

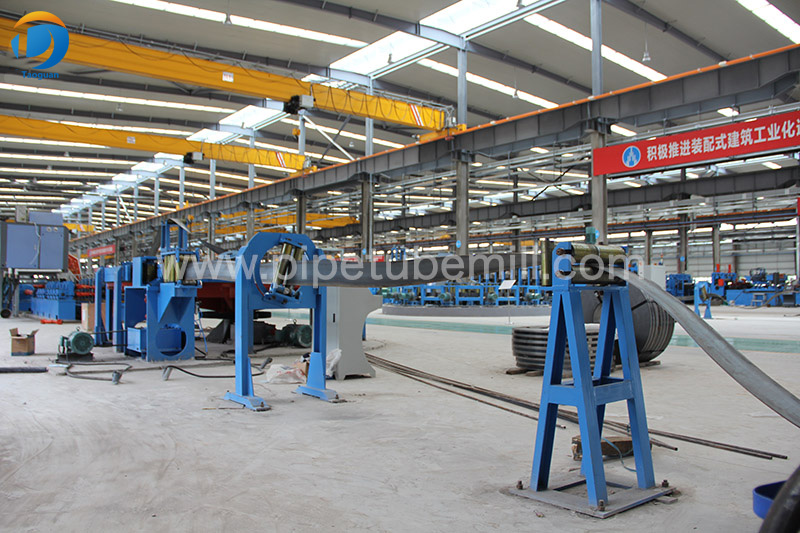

Transmission device

Transmission Device

Horizontal Accumulatorator

Horizontal Accumulatorator

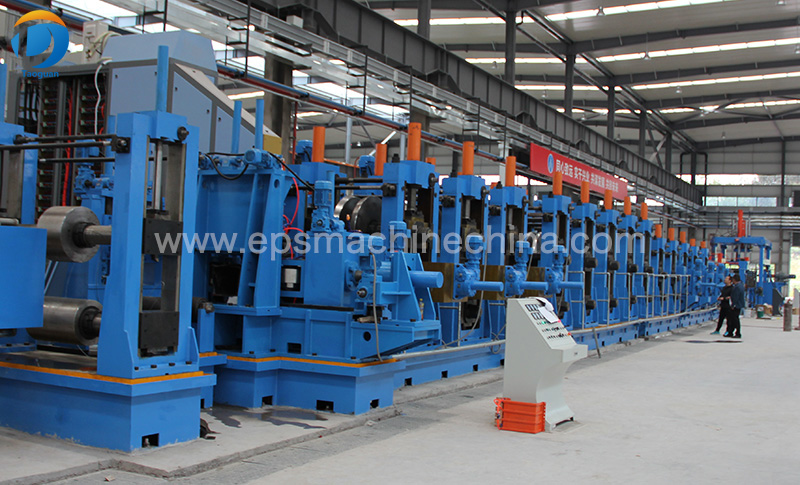

forming machine

Forming machine

High-frequency welding machine

High-frequency Welding Machine

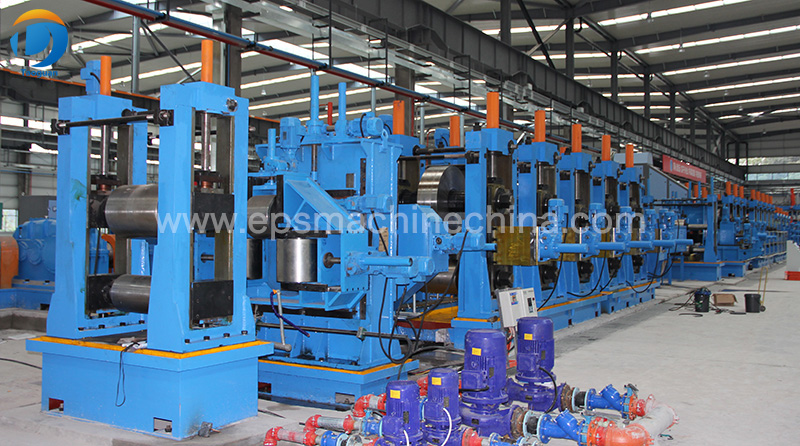

Sizing-Machine

Sizing Machine

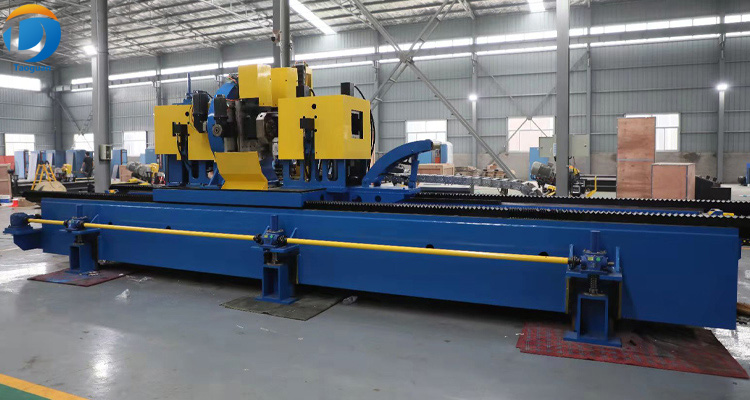

cold flying saw cutter

Cold Flying Saw Cutter

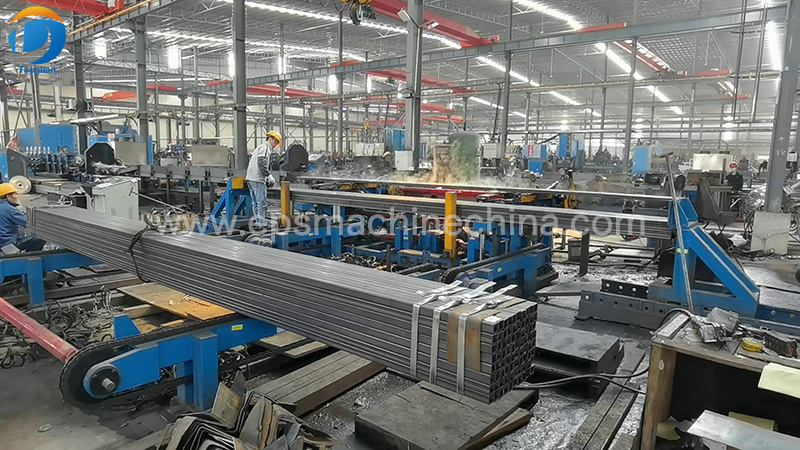

Automatic stacker

Automatic Stacker

Technical Parameter

No. Round Pipe OD(mm) Sq.&Rect.pipe(mm) Thickness(mm) Forming speed(m/min)
CG-32 φ13-φ32 12*12-25*25 0.6-2.2 70-130 m/min
CG-50 φ16-φ50.8 10*10-50*50 0.6-3.0 60-120 m/min
CG-76 φ12.7-φ76 25*25-60*60 0.7-3.0 20-120 m/min
CG-89 φ25-φ95 20*20-75*75 1.0-3.0 20-110 m/min
CG-114 φ40-φ114 40*40-90*90 1.0-3.5 20-65 m/min
CG-127 φ48-φ127 40*40-100*100 1.0-4.0 20-60 m/min
CG-165 φ76-φ165 60*60-130*130 2.0-6.0 20-50 m/min
CG-219 φ89-φ219 70*70-150*150 4.0-8.0 20-50 m/min

Component Brands

NO.Parts NameBrand
1Main Drive MotorJiangsu King
2Main ReducerJiangsu Guomao
3Motor Driver (DC-digital converter)PARKER
4Bearing SeatHRB, LYC, ZWZ
5Pneumatic ComponentsAIR TAC

Carbon Tube Mill Application

Automatic stacker

Production Process

Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator→ Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table →Inspecting→ Packing→ Warehouse

Pipe Mill Flow Chart
