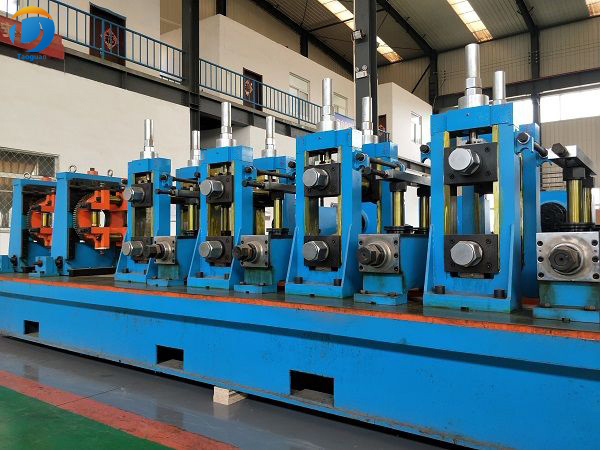

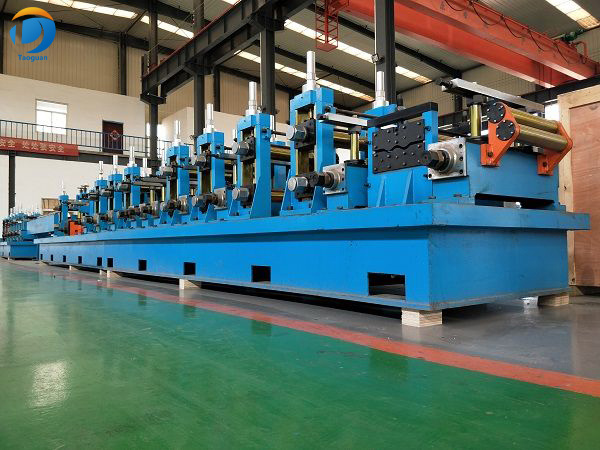

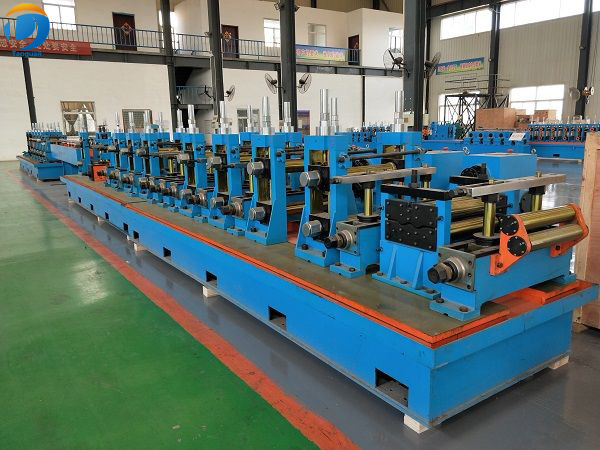

ERW 127 Tube Mill Machine
ERW 127 Tube Mill Description
ERW 127 high frequency longitudinal welded pipe production line tube mill is designed to produce welded pipes of 48mm-127mm in OD and 1.0mm-4.0mm in wall thickness, as well as corresponding square and rectangular pipe.
ERW 127 Tube Mill Advantages
ZTF forming process save roller up to 60%
With direct square forming technology, one set of roller can produce all pipe sizes
Electric control and automatic adjustment, high precision,high roller change speed
Double Cone Decoiler is used to support the coil and provide raw materials for the production line. The reel is cantilever type, pneumatic expansion and contraction; in order to maintain the tension of the strip and prevent loose coiling, the reel adopts pneumatic brake.
Shearing and Automatic Welding Machine is connect the strips after cutting the preceding coil tail end and the succeeding coil top end and being welded together by CO2 gas shielding welding to keep the Pipe Welding Line running continuously. Type: Automatic welding by TIG welder
The vertical accumulator is used to store steel strips to ensure continuous operation of the host when welding two coils. Occupy small space.
The horizontal accumulator is used to store steel strips to ensure continuous operation of the host when welding two coils.
Advantage: The feeding is more stable, without bending, while reducing the resistance of the feeding, it will not cause damage to the galvanized layer surface, and the noise is relatively lower.
The steel strip of a certain width is bent into corresponding specifications of round pipe, rectangular pipe or open profile through roll forming. This unit consists of five parts: forming machine, welding machine, cooling part, sizing machine, and straightening machine.
High frequency welding equipment designed for both single and dual coil induction application and HF contact welding processes, these welders offer optimal flexibility for your production. Power range: from 150 to 500kW, Low industrial water consumption
Commonly known as chopping saw, computer flying saw, also called friction saw. High-speed cutting is accompanied by high temperature and sparks, and the cutting end surface is purple.
Technical Parameter
| Item | Parameter | Thickness |
|---|---|---|
| Round Pipe | 48mm-127mm | 1.0mm-4.0mm |
| Square & Rectangle Tube | 40mm*40mm-100mm*100mm 30mm*50mm-80mm*120mm | 1.0mm-3.0mm |
| Length | 6m-12m Length Tolerance: ±3mm | |
| Production Speed | 20-60 m/min | |
| Production Capacity | 30,000 ton/year | |
| Carbon Steel Coil | Q235B(ASTM GR·D,σs 230) | |
| Width | 190mm-440mm | 2.0mm-5.0mm |
| Coil ID | 520-680mm | |
| Coil OD | Max 1700mm | |
| Coil Weight | 5.0T | |
| Mill Installed Capacity | 180Kw | |
| Line Area | 80m(Length)*6.5m(Width) | |
| Worker | 6-8 Workers |
Component Brands
| NO. | Parts Name | Brand |
|---|---|---|
| 1 | Main Drive Motor | Jiangsu King |
| 2 | Main Reducer | Jiangsu Guomao |
| 3 | Motor Driver (DC-digital converter) | PARKER |
| 4 | Bearing Seat | HRB, LYC, ZWZ |
| 5 | Pneumatic Components | AIR TAC |
Production Process
Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator→ Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table →Inspecting→ Packing→ Warehouse
