CG-89 Flying Cold Saw Cutter

Cold Flying Saw Machine

Cold Flying Saw Machine Description

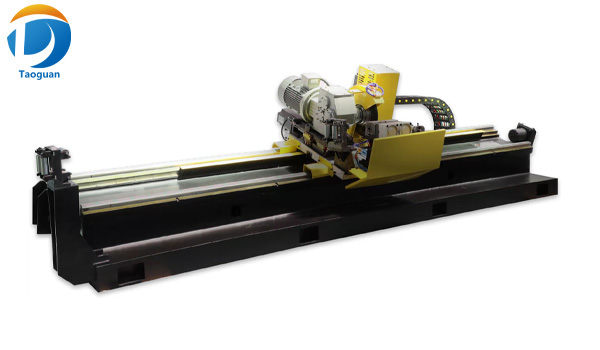

CG-89 Cold Flying Cutter

Flying cold sawing is a new online cutting technology in H.F. welded tube industry. Compared with the friction heat saw, the biggest advantage is that the end of the tube is smooth and without burr after cutting off. For high quality requirements, these is no need off-line second treatment. In addition, due to the use of servo tracking technology, cutting length accuracy is higher than the traditional friction flying saw.

CG-89 Cold Saw Machine Parameter

Machine Model: CG-Cutter-89

Tube size: Φ:38mm-105mm
Tube wall thickness: 0.8mm-4.0mm

Max running speed: 70mm
Carriage Motor: 15KW (Yaskawa Servo)
Cutting Motor: 18.5KW (Chinese Brand Inverter)
Feeding Motor: 4.4KW (Yaskawa Servo)
Blade: HSS or TCT, Diameter 500 mm
Clamp: 3 Group/Clamp Source: Hydraulic
Dimensional: 5600*1850*1500mm

Production Process

Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator→ Forming → H.F. induction welding → External burr removing → Cooling → Sizing → Flying saw → Run out table →Inspecting→ Packing→ Warehouse

Tube Mill Flow Chart
