Project Description

32 ERW Tube & Pipe Mill Machine

Pipe-Mill-uncoiler

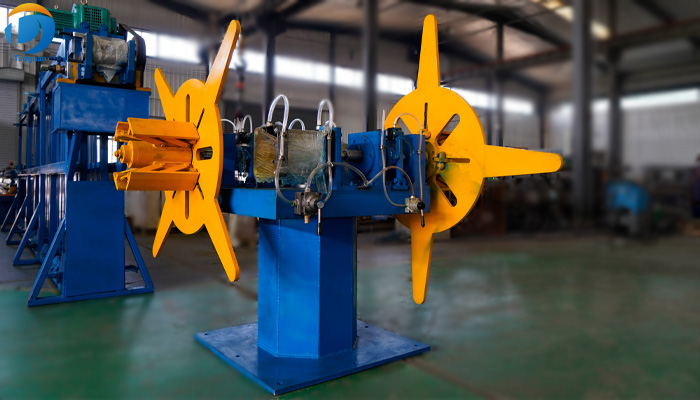

Double Cone Decoiler is used to support the coil and provide raw materials for the production line. The reel is cantilever type, pneumatic expansion and contraction; in order to maintain the tension of the strip and prevent loose coiling, the reel adopts pneumatic brake.

Shearing Welding Machine2

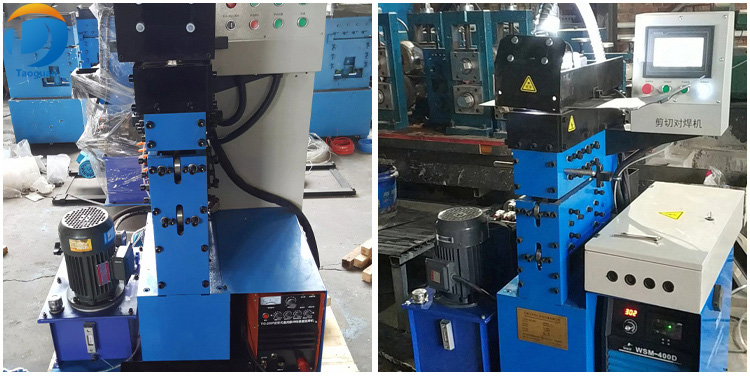

Shearing and Automatic Welding Machine is connect the strips after cutting the preceding coil tail end and the succeeding coil top end and being welded together by CO2 gas shielding welding to keep the Pipe Welding Line running continuously. Type: Automatic welding by TIG welder

Tube Mill Accumulator

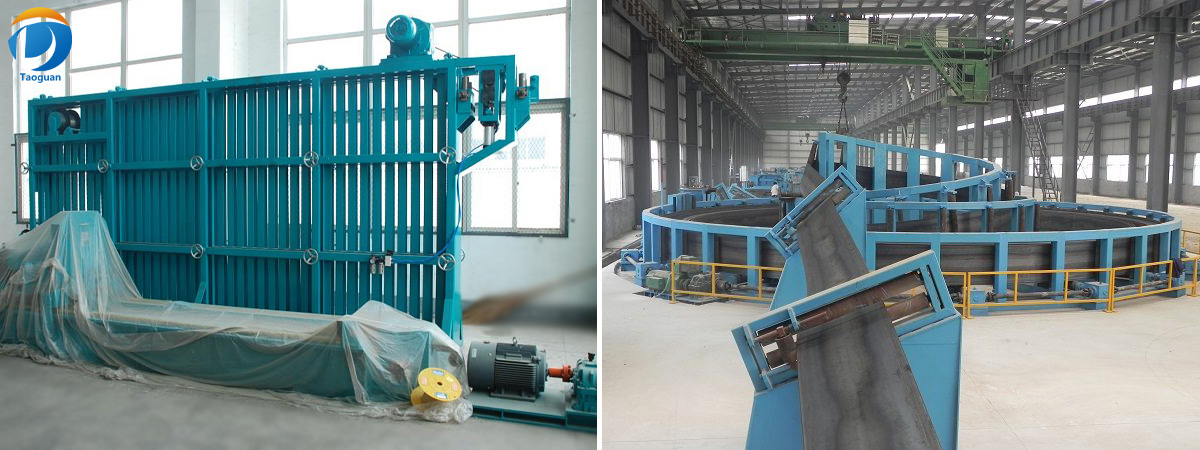

The vertical accumulator is used to store steel strips to ensure continuous operation of the host when welding two coils. Occupy small space.

The horizontal accumulator is used to store steel strips to ensure continuous operation of the host when welding two coils.
Advantage: The feeding is more stable, without bending, while reducing the resistance of the feeding, it will not cause damage to the galvanized layer surface, and the noise is relatively lower.

Forming and Sizing Unit

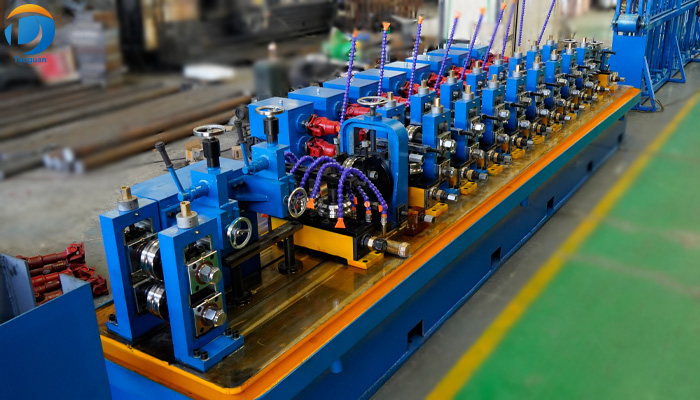

The steel strip of a certain width is bent into corresponding specifications of round pipe, rectangular pipe or open profile through roll forming. This unit consists of five parts: forming machine, welding machine, cooling part, sizing machine, and straightening machine.

High frequency welding equipment

High frequency welding equipment designed for both single and dual coil induction application and HF contact welding processes, these welders offer optimal flexibility for your production. Power range: from 150 to 500kW, Low industrial water consumption

Cold Flying Saw

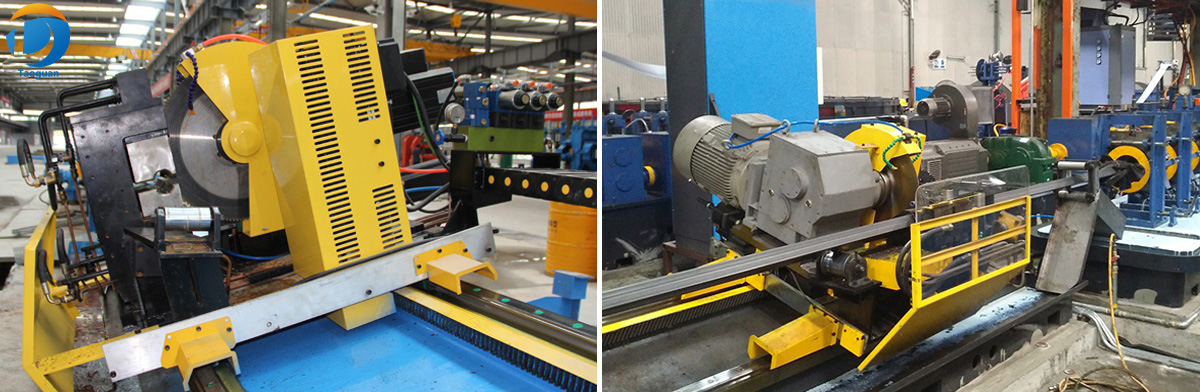

Commonly known as chopping saw, computer flying saw, also called friction saw. High-speed cutting is accompanied by high temperature and sparks, and the cutting end surface is purple.

ERW 32 Pipe Tube Mill Machine

ERW 32 Tube Mill Description

ERW20 high frequency longitudinal welded pipe tube production line is designed to produce welded pipes of 8mm-20mm in OD and 0.5mm-1.5mm in wall thickness, as well as corresponding square and rectangular pipe.

ERW 32 Tube Mill Application

Carbon steel and stainless steel tubes for metallurgy, GI, construction, transportation, machinery and vehicle industries.

Machine Advantages

  • High production efficiency, line speed can be up to 120m/min.
  • Low wastage, low unit wastage and low production cost.
  • High accuracy, diameter error is only 0.5/100 of the pipe OD.
  • High yielding, the machine works stably at a high speed, which improves the yielding of products.

Technical Parameter

Round TubeO.D.φ13mm-φ32mm
Thickness: 0.6mm-2.2mm
Square & Rectangular TubeSize: 12mm*12mm-25mm*25mm
Thickness: 0.6mm-1.7mm
Length5m-12m
Length Tolerance±1.5mm
Production SpeedMax 130m/min
Coil MaterialHR/CR Carbon steel or galvanized steel
High-Strength Low-Alloy-Steel(HSLA)
Adcanced High-Strength Steels(AHSS)
Width30mm-80mm
Thickness: 0.5mm-1.5mm
Coil IDφ450-φ520mm
Coil ODMax φ1200mm
Coil Weight1.0-1.5Tons

Major Component Brands

NO.Parts NameBrand
1Main Drive MotorJiangsu King
2Main ReducerJiangsu Guomao
3Motor Driver (DC-digital converter)PARKER
4Bearing SeatHRB, LYC, ZWZ
5Pneumatic ComponentsAIR TAC

Pipe Mill Machine Technical Flow

Scrolling up → Uncoiling → Shear and Welding → Spiral accumulator → Forming → H.F. induction welding→ External burr removing → Cooling → Sizing→ Flying saw → Run out table →Inspecting → Packing → Warehouse

Pipe mill production process
